Flexible storage scalability for your Turbo NAS. Quick & simple.

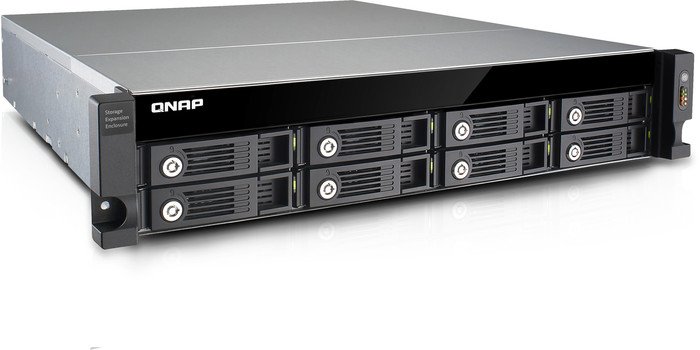

When expanding data storage capacity, deploying multiple servers can lead to complexity in management and also dramatically increase costs. The QNAP UX-800U-RP expansion enclosure is an economical expansion alternative designed with easy setup in mind for expanding the total storage space of your Turbo NAS. The UX-800U-RP offers a hassle-free storage expansion for business use. Each UX-800U-RP provides additional 8 hard drives for the Turbo NAS and allows for a total raw capacity of 64TB* making it especially useful for massive data backup, digital media collection, and video surveillance.
| Hard Disk Drive | 8 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive NOTE: 1. The system is shipped without HDD. 2. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
|---|---|
| Hard Disk Tray | 8 x Hot-swappable tray with key lock |
| RAID Management | Yes, (via QNAP QTS Storage Manager) |
| USB | 1 x USB 3.0 port (rear) |
| LED Indicator | Power, Link, Status |
| LCD Panel | Monochrome-LCD display with backlight |
| Secure Design | Kensington security slot for theft prevention |
| Fan | Quiet cooling fan (7 cm, 12V DC) x 2 |
| Power Supply Unit | Redundant PSU. Input: 100-240V AC, 50/60Hz Output: 300W |
| Dimensions | 89 (H) x 482 (W) x 534 (D) mm 3.50 (H) x 18.98 (W) x 21.02 (D) inch |
| Weight | 11.02 kg / 24.29 lb (Net) 19.26 kg / 42.46 lb (Gross) |
| Form Factor | Rackmount |
| Temperature | 5°C ~ 35°C (40°F ~ 95°F) |
| Sound Level* | Sound pressure (LpAm): 44.1 dB(A) |
| Humidity | 5~95% RH non-condensing, wet bulb: 27˚C. |
| Package Contents |
|
Remark:
The UX-800U-RP rack mount models comply with ANSI/EIA-RS-310-D rack mounting standards. Before purchasing the server racks for these models, please make sure the server racks conform to the following criteria:
1. Rack size
- Mounting post width: ≥ 451mm
- Panel width: ≥ 485mm
- Mounting post depth: 555mm-757mm
2. The optional rack kits for the UX-800U-RP rack mount models are only compatible with square-hole server racks.
* Tseting Environment:
Refer to ISO 7779, ISO 3744 ,Telcordia GR 63 CORE and ETSI EN 300 753 ; Maximum HDD loaded ; 40HL ½ ” High Sensitivity
Microphone at the by stander position. ; Background noise is 6.5 ~ 7.0dB(A) ; Ambient temperature is 21 ± 2℃ ; Relative humidity is 63% ± 5%
