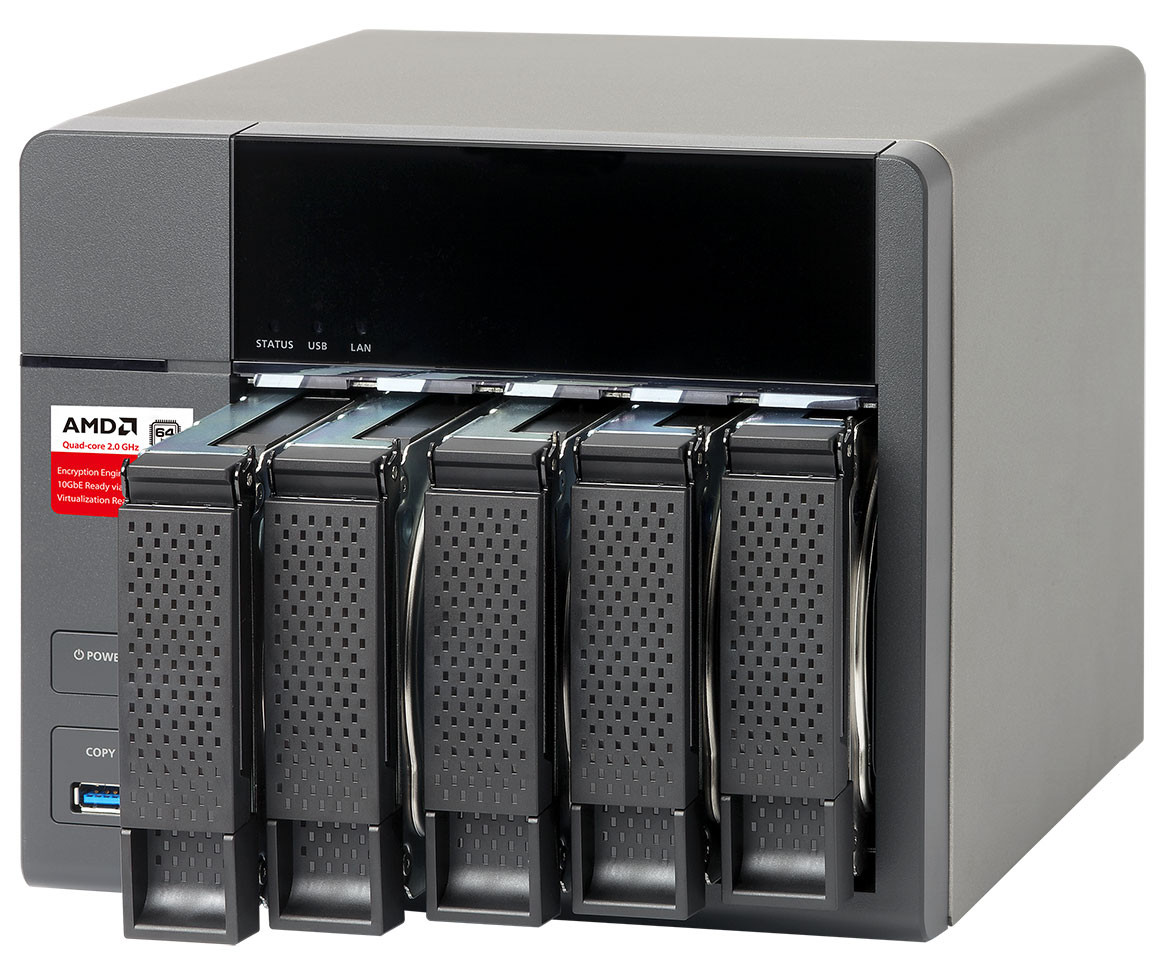

The TS-563 is a powerful network storage system powered by a high-performance AMD® quad-core processor. It uniquely provides the potential for 10GbE expandability at a budget price to maximize ROI, and doubles the encrypted file transfer performance with the AES-NI hardware-accelerated encryption engine to over 400 MB/s. Powered by the QTS operating system, the TS-563 provides versatile all-in-one server functionalities as well as unique features including Virtualization Station, which allows users to run VMs on the same device. The TS-563 is designed for small and medium-sized businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.
- 10GbE-ready, highly-efficient storage solution for HD video editing and sharing
- Hardware-accelerated encryption engine for efficient cryptographic performance exceeding 400 MB/s
- Run multiple Windows/Linux/UNIX/Android-based virtual machines with the Virtualization Station
- Manage, share, and back up business data with Real-time Remote Replication (RTRR)
- NAS and iSCSI-SAN unified storage solution for server virtualization
- Supports VMware®, Citrix®, and Microsoft® Hyper-V and advanced virtualization features
- Scale up to 21 drives with QNAP UX-800P expansion enclosures
| CPU | AMD® x86 G-Series Quad-core 2.0 GHz processor |
|---|---|
|
Floating Point Unit
|
Yes |
|
Hardware Encryption Engine
|
Yes (AES-NI) |
| DRAM | System memory:
TS-563-2G: 2GB DDR3L RAM (2GB x1)
TS-563-8G: 8GB DDR3L RAM (8GB x1) Total memory slots: 2 SODIMM NOTE: For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide |
| Flash Memory | 512MB |
| Hard Disk Drive | 5 x 3.5″or 2.5″SATA 6Gb/s, SATA 3Gb/s hard drive or SSD NOTE: 1. The system is shipped without HDD. 2. For the HDD compatibility list, please visit https://www.qnap.com/compatibility |
| Hard Disk Tray | 5 x Hot-swappable tray |
| LAN Port | 2 x Gigabit RJ-45 Ethernet port (Expandable up to 4 x GbE or 2 x 10GbE + 2 x GbE via PCIe NIC) |
| Network Expansion Slot | 1 (PCIe Gen2 x 4) |
| LED Indicators | Status, USB, HDD 1-5 |
| USB | 5 x USB 3.0 port (Front: 1, Rear: 4) Support USB printer, pen drive, and USB UPS etc. |
| Buttons | Power/Status, USB One-Touch-Backup, reset |
| Alarm Buzzer | System warning |
| Form Factor | Tower |
| Dimensions | 185(H) x 210.6(W) x 235.4(D) mm 7.28(H) x 8.29(W) x 9.27(D) inch |
| Weight | Net: 4.4 kg (9.7 lbs) Gross: 5.8 kg (12.79 lbs) |
| Power Consumption (W) | S3 sleep: 2.26W HDD standby: 30.17W In operation: 47.68W (with 5 x 2TB HDDs installed) |
| Sound Level* | Sound pressure (LpAm) :20.1 dB(A) |
| Temperature | 0-40˚C |
| Humidity | 5~95% RH non-condensing, wet bulb: 27˚C |
| Power Supply | ATX 250W, 110-240V AC, 50-60Hz, 5A |
| Secure Design | Kensington security slot for theft prevention |
| Fan | 1 x quiet cooling fan (12cm, 12V DC) |
| 1. | LED Indicators: Status, USB, LAN |
6. | Power Connector |
| 2. | Hard Drive LEDs | 7. | PCIe Expansion Slot |
| 3. | Power Button | 8. | USB 3.0 Port x 4 |
| 4. | One Touch Copy Button | 9. | Gigabit LAN Port x 2 |
| 5. | USB 3.0 Port x 1 | 10. | Kensington Security Slot |
* Tseting Environment:
Refer to ISO 7779, ISO 3744 ,Telcordia GR 63 CORE and ETSI EN 300 753 ; Maximum HDD loaded ; 40HL ½ ” High Sensitivity
Microphone at the by stander position. ; Background noise is 6.5 ~ 7.0dB(A) ; Ambient temperature is 21 ± 2℃ ; Relative humidity is 63% ± 5%
