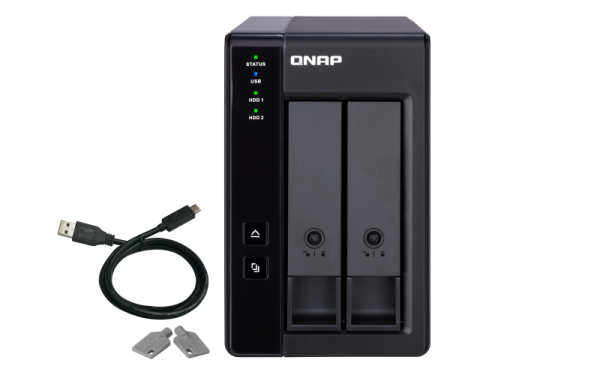

2 Bay USB Type-C Direct Attached Storage with Hardware RAID
The TR-002 USB 3.1 Gen. 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.1 Gen. 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
-
USB 3.1 Gen. 2 Type-C port for faster data transfer.
-
Supports up to two SATA drives.
-
Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.
-
Lockable hard drive trays to prevent accidental drive removal.
-
Eject button for disconnecting the TR-002 from a NAS or computer*.
*Requires the QNAP External RAID Manager utility.
-
Instantly back up files from the TR-002 to the NAS using the One Touch Copy button**.
**Requires a QNAP NAS with a one touch copy button when in external drive mode. This feature will be supported from Q2 2019.
| CPU | Micro processor with hardware RAID |
| Drive Bay | 2 x 2.5-inch or 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
TR-002 does not support the QDA-A2AR/ QDA-A2MAR. |
| Hot-swappable | |
| USB 3.0 port | 1 x Type-C USB 3.1 Gen 2 |
| Dimensions (HxWxD) | 168.5 × 102 × 219 mm |
| Weight (Net) | 1.37 kg |
| Max. number of HDDs/SSDs supported | 2 |
| Hard Drive Type | 2 x 2.5-inch or 3.5-inch SATA 6Gb/s |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External Power Adapter, 36W, 100-240V |
| Power Consumption: HDD Sleep Mode | 2.98 W |
| Power Consumption: Operating Mode, Typical | 10.15 W
With drives fully populated
|
| Fan | 1 x 70mm, 12VDC |
| Sound Level | 17.8 db(A) |
| Kensington Security Slot |
