8th Gen Intel® Core™ processors. Built-in Mellanox® ConnectX®-4 Lx 10GbE Controller. iSER supported.

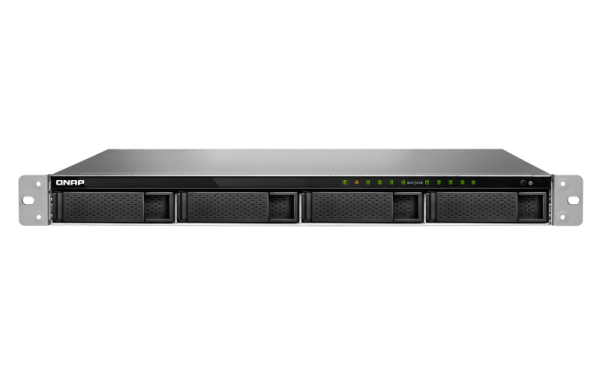

Designed for diversified business IT environments, the TVS-972XU-RP features an 8th generation Intel® Core™ processor, Mellanox® ConnectX®-4 Lx 10GbE controller, and PCIe expansion for 25GbE / 40GbE connectivity to boost intensive large file sharing, heavily-loaded backups, or virtualization applications. Its hybrid storage architecture with four 3.5-inch HDD and five 2.5-inch SSD drive bays allows for enabling SSD caching and Qtier™ auto-tiering technology for a significant performance boost. PCIe expandability also allows for installing graphics cards to empower AI workflows and video transcoding, and the 4K HDMI 2.0 output can display surveillance videos on a monitor or TV to improve surveillance management. The TVS-972XU-RP also features a redundant power supply to ensure maximum system uptime.
-
Two 10GbE SFP+ SmartNIC ports with iSER support accelerate large file sharing and intensive data transfer.
-
PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.
-
4K media playback and online transcoding. Directly view on a TV/monitor via HDMI 2.0 output (up to 4K @60Hz).
-
Software-defined SSD RAID extra over-provisioning (from 1% to 60%) optimizes SSD random write speeds and extends SSD lifespan.
-
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
-
Comprehensive security management, providing a security portal for your NAS and helping you to stay informed of NAS status at all times.
Available Models
TVS-972XU-RP-i3-4G
Intel® Core™ i3-8100 quad-core 3.6 GHz processor, 4 GB RAM (4 GB x1)
| CPU | Intel® Core™ i3-8100 4-core 3.6 GHz Processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics 630 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 4 GB UDIMM DDR4 (1 x 4GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x DDR4 long DIMM |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch + 5 x 2.5-inch |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port |
| Jumbo Frame | |
| PCIe Slot | 1 x Gen3 x16 |
| USB 3.0 port | 2 |
| USB 3.1 Gen 2 (10Gbps) Port | 2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps 2 x Type-A USB 3.1 Gen2 5V/1A 10Gbps |
| HDMI Output | 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
| Form Factor | 1U Rackmount |
| LED Indicators | HDD 1-4, SSD 1-5, Status, LAN |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 482.6 × 507.54 mm |
| Weight (Net) | 8.63 kg |
| Weight (Gross) | 11.62 kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 300W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 70.39 W
With WD10EFRX drives fully populated
|
| Fan | System: 3 x 4.0cm fan (12V DC) |
| Sound Level | 47 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot |
