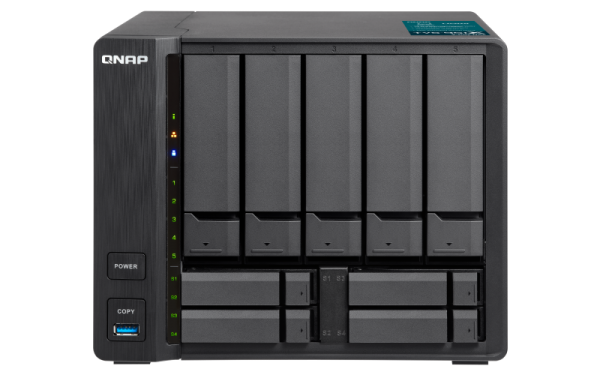

Award-winning, high-capacity, highly-compact 9-bay multimedia NAS with 10GbE connectivity
The TVS-951X is powered by a 7th-generation Intel® Celeron® 3865U low-power dual-core processor, with 2GB/8GB DDR4 dual-channel memory (up to 32GB) and features a hybrid drive bay design (including five 3.5-inch drive bays and four 2.5-inch SSD bays) that supports up to nine drives in the same physical space as a 5-bay NAS. When 2.5-inch SSDs are installed in their dedicated bays, you can enable SSD caching and Qtier auto-tiering technologies to boost overall system performance. As the price of SSDs continues to become more accessible, the TVS-951X provides a high-performance and budget-friendly storage solution for SMBs. The TVS-951X also features a built-in 10GBASE-T/NBASE-T port for you to build a 10GbE high-speed network environment.
-
A single 10GBASE-T/NBASE-T port provides 10GbE connectivity for accelerating virtualization tasks and file sharing.
-
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
-
Snapshots fully record the system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
-
Full support for virtualization and containerized applications, centralized storage, backup, sharing, and disaster recovery.
-
4K media playback and online transcoding. HDMI output for direct multimedia playback.
-
Expand available storage with UX-800P or UX-500P expansion enclosures or by using QNAP’s VJBOD technology to use the unused storage capacity of other QNAP NAS.
Available models
TVS-951X-2G
Intel® Celeron® 3865U dual-core 1.8 GHz processor, 2 GB RAM (1 x 2 GB)
TVS-951X-8G
Intel® Celeron® 3865U dual-core 1.8 GHz processor, 8 GB RAM (2 x 4 GB)
| CPU | Intel® Celeron® 3865U dual-core 1.8 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 610 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 2 GB SO-DIMM DDR4 (1 x 2 GB)
or 8 GB RAM (2 x 4 GB) |
| Maximum Memory | 32 GB (2 x 16 GB) |
| Memory Slot | 2 x SO-DIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 RAM modules.
|
| Flash Memory | 512MB (Dual boot OS protection) |
| Drive Bay | 5 x 2.5-inch or 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives2.5-inch bays: 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 1 |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Please use Cat 6a or Cat 7 LAN cables (sold separately) to achieve 10GbE speed over longer distance.
|
| Jumbo Frame | |
| USB 3.0 port | 4 |
| IR Sensor | (Optional QNAP RM-IR004 remote control) |
| HDMI Output | 1, HDMI 1.4b (up to 4096 x 2304 @ 24Hz) |
| Audio Output | 1 x speaker, 1 x line out |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-5, SSD1-4 |
| Buttons | Power, One Touch Copy, Reset |
| Dimensions (HxWxD) | 188.2 × 329.3 × 279.6 mm |
| Weight (Net) | 3.53 kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 120W 100-240V AC adapter |
| Fan | 1 x 120mm system fan |
| Kensington Security Slot |
