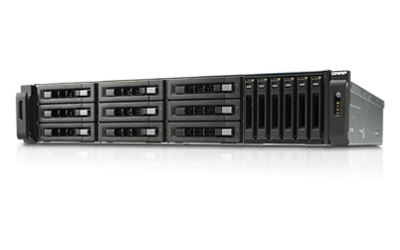

Exclusively providing a Thunderbolt™/NAS/iSCSI SAN triple solution, the TVS-1582TU offers four high-bandwidth Thunderbolt™ 3 ports for optimizing 4K video transfer and online editing. It is a perfect match for Thunderbolt-equipped Mac® and Windows® users for 4K workflows, file storage and high-speed sharing. The compact rack-mounted form factor makes the TVS-1582TU especially useful for SNG/OB van live media production that requires frequent relocation. The TVS-1582TU adopts 7th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution to fulfill critical tasks with sophisticated capabilities.
A hybrid NAS supporting 3.5” & 2.5” drives in one chassis
Qtier technology and SSD cache enable 24/7 optimized storage efficiency
The Network & Virtual Switch app assists network traffic distribution and re-routes dedicated bandwidth for diverse applications
Superior 4K video playback and transcoding
Four Thunderbolt™ 3 (40 Gbps) ports and dual 10GbE ports for on-the-fly video editing and rapid file sharing
Four available combinations with Mac/PC and JBOD for flexible attaching, sharing and expansion
Flexible storage expansion with QNAP storage expansion enclosures and Virtual JBOD (VJBOD)
Supports QRM+ unified remote server management, virtualization (storage and hosting), containerization, and WirelessAP service
Note:
1. Requires MacOS Sierra 10.12.3 (or later) for using Thunderbolt connection on Mac.
2. Thunderbolt 3 reaches the maximum theoretical transfer rate of 40 Gigabits per second. Actual performance may vary due to hardware/software limitations and usage environment.
3. Thunderbolt 3 (40 Gbps) doubles its theoretical potential for speed when compared to Thunderbolt 2 (20 Gbps). This results in the TVS-1582TU’s file transfer speed increasing from 900 MB/s to 1,600 MB/s.
Specification
| CPU | TVS-1582TU-i5-16G: Intel® Core™ i5-7500 3.4 GHz quad-core processor TVS-1582TU-i7-32G: Intel® Core™ i7-7700 3.6 GHz quad-core processor |
|---|---|
| System memory | Total DIMM slots: 4 Maximum memory: 64 GB (16 GB x4) TVS-1582TU-i5-16G： System memory: 16 GB DDR4 RAM
Memory modules pre-installed: 8 GB x2 TVS-1582TU-i7-32G： System memory: 32 GB DDR4 RAM
Memory modules pre-installed: 8 GB x4 |
| Flash Memory | 512MB DOM |
| Hard Drive Tray | 6 x 2.5″ SSD 9 x 2.5″/3.5″ hard drive or SSD |
| Drive Interface | SATA 6Gbps/3Gbps; Hot-swappable |
| Thunderbolt Port | 4 x Thunderbolt 3 port |
| USB | 4 x USB 2.0 port (Rear) 4 x USB 3.0 port (Rear) |
| LAN Port | 2 x SFP+ 10GbE port 4 x GbE port |
| HDMI Output | 1 (HDMI 1.4b x1) |
| LED Indicators | System status, 2.5″ SSD, 3.5″ HDD |
| Buttons | System: Power button, Reset button |
| System Warning | Buzzer |
| Form Factor | 2U rackmount |
| Dimensions (H x W x D) | 88 x 442.5 x 530.5 mm 3.46 x 17.42 x 20.89 inch |
| Weight | Net weight (NAS only): 14.18 kg/ 31.26 lb Gross weight (with packing and accessories): 21.41 kg/ 47.20 lb |
| Sound Level (dB)* | Sound pressure (LpAm) (bystander position): 53.9 dB (with 9 x Seagate ST2000VN000-1HJ164 hard drive and 6 x Seagate ST500LT012 SSD installed) |
| Temperature | 0-40˚C |
| Relative Humidity | 5~95% non-condensing, wet bulb: 27˚C |
| Power Supply | Redundant power: Input 90~264VAC; 450W x 2 |
| PCIe Slot | 3 (1* PCIe Gen3 x8; 2* PCIe Gen3 x4) Note: Three PCle slots are occupied by two Thunderbolt™ 3 card and a 10GbE adapter. |
| Fan | 4 x 6 cm smart cooling fan |
