TS-653B
QTS-Linux combo quad-core NAS with PCIe port for diversified storage applications

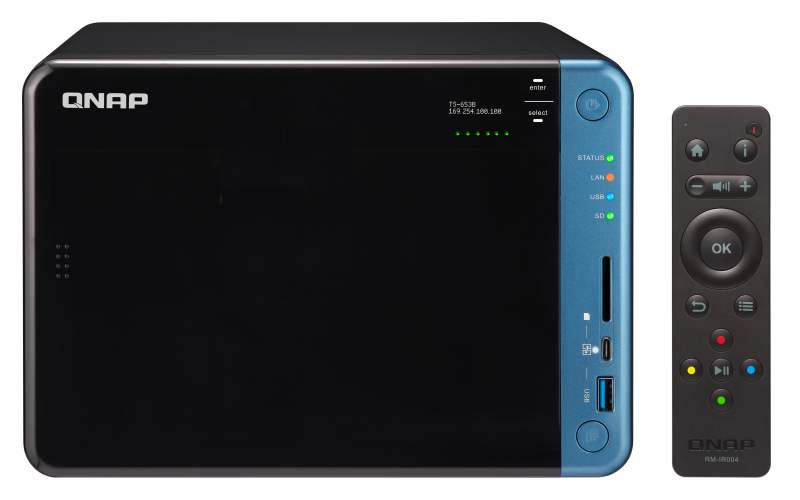

The TS-653B comes with a sleek new look, featuring an OLED panel and two capacitive touch buttons. The TS-653B also features a PCIe port for boosting the potential applications of your NAS: the QNAP QM2 expansion card can be installed for adding an M.2 SSD cache/10GbE connectivity, a compatible wireless card can be installed to use the TS-653B as a wireless access point, and a USB 3.1 10Gbps card can be added for easier backup to/from multiple external storage devices. With a USB Type-C QuickAccess port and a SD card slot, the TS-653B simplifies transferring and sharing files without needing a network connection. The TS-653B also provides feature-rich multimedia functionality, such as 4K @30Hz video playback and real-time transcoding.
- PCIe port supports installing a QNAP QM2 dual-port M.2 SSD/10GbE connectivity, a compatible PCIe wireless adapter, or a USB 3.1 10Gbps card
- USB QuickAccess port for direct access to files on NAS without needing a network connection
- Supports virtualization, centralized storage, backup, sharing, and disaster recovery
- A hybrid approach to virtualization in one NAS: Virtualization Station and Container Station
- Supports dual-channel 4K H.264/H.265 hardware decoding and on-the-fly or offline transcoding
- IFTTT Agent enables web automation for improved working efficiency
Specification
| Ordering P/N | TS-653B-8G | TS-653B-4G | |
|---|---|---|---|
| CPU | Intel® Celeron® J3455 quad-core 1.5 GHz, up to 2.3 GHz | ||
|
Encryption Accleration
|
✔ (AES-NI) | ||
| Graphics | Intel® HD Graphics 500 | ||
| System memory | 8GB DDR3L (2 x 4GB) |
4GB DDR3L (2 x 2GB) |
|
| Maximum Memory | 8GB | ||
| Total Memory Slots | 2 x DDR3L SODIMM slots (For dual-DIMM configuration, you must use a pair of identical DDR3L modules.) |
||
| Drive | Hot-swappable 6 x 3.5″/2.5″ SATA 6Gb/s HDD/SSD | ||
| GbE LAN Port | 2 x RJ45 Gigabit LAN port | ||
| 10GbE LAN Port | Optional 10 Gigabit LAN port via a PCIe expansion card | ||
| USB 3.0 Port | 5 x USB 3.0 Type-A ports | ||
| USB QuickAccess | USB Type-C | ||
| PCIe Slot | 1 PCIe 2.0 x2 slot | ||
| HDMI Port | 2 x HDMI v1.4b, up to 3840 x 2160, 30 Hz | ||
| Audio Input | 2 x 3.5mm dynamic microphone input jacks | ||
| Audio Output | speaker, 3.5mm line out jack | ||
| Display | 0.96” monochrome OLED | ||
| LED Indicators | Status/Power, LAN, USB, Drives, SD card, USB QuickAccess | ||
| Buttons | Power, USB copy, Reset, Capacitive touch buttons (select, enter) | ||
| Infrared Receiver | ✔ supplied with a QNAP RM-IR004 remote control (compatible with RM-IR002 remote control) | ||
| SDXC Card Reader | ✔ | ||
| Other Interfaces | Kensington security slot | ||
| Dimension (HxWxD) | 168 x 235 x 226 mm 6.61 x 9.25 x 8.90 inch |
||
| Weight | Net: 3.02 kg (6.66 lbs) Gross: 4.63kg (10.21 lbs) |
||
| Sound Level* | Operating low speed: 19.6 dB(A) | ||
| Operating Temperature | 0 ~ 40˚C (32˚F ~ 104˚F) | ||
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | ||
| Power Consumption | HDD sleep: 20.62W Typical Operation: 40.33W |
||
| Power Supply | 120W AC adapter, 100-240V | ||
| Fan | 2 x 9 cm | ||
| Package Contents | NAS, QIG, 2 x RJ45 ethernet cables, AC adapter, power cord, 2.5″ drive screw kit | ||
