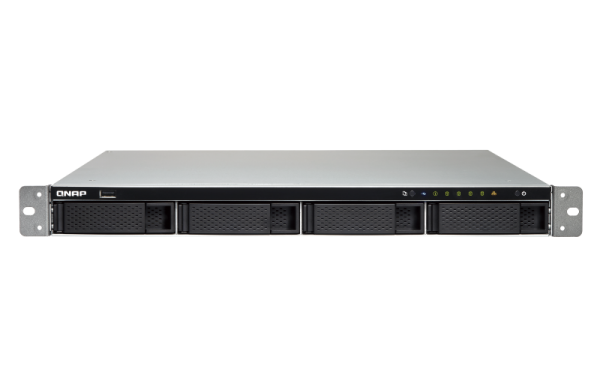

High-performance quad-core 10GbE NAS with redundant power supplies
The cost-efficient 10GbE-ready TS-463XU-RP is powered by a high-performance AMD G-Series quad-core processor. Featuring native 10GbE connectivity that delivers high performance with persistent throughput, along with storage scalability, the TS-463XU-RP is perfect for businesses that demand higher bandwidth for data centers and virtualization.
-
Built-in single-port 10GbE 10GBASE-T NIC to accelerate virtualization and high-resolution video editing and sharing.
-
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
-
Snapshots fully record system status and data, and assist in quick data recovery and mitigating the threat of ransomware attacks.
-
Host containerized applications and virtual machines with various operating systems.
-
Secure private cloud supporting centralized storage, backup, sharing, and disaster recovery.
-
NAS and iSCSI-SAN (IP-SAN) unified storage solution with scalable design.
Available Models
TS-463XU-RP-4G
AMD GX-420MC quad-core 2.0 GHz processor, 4 GB RAM (upgradable to 16 GB)
| CPU | AMD G-Series GX-420MC quad-core 2.0 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 4 GB SO-DIMM DDR3L (1 x 4 GB) |
| Maximum Memory | 16 GB (2 x 8 GB) |
| Memory Slot | 2 x SO-DIMM DDR3L
For dual-DIMM configuration, you must use a pair of identical DDR3L modules.
|
| Flash Memory | 512MB (Dual boot OS protection) |
| Drive Bay | 4 x 2.5-inch or 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 SSD Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 4
Expandable with an optional PCIe adapter
|
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Pre-installed QXG-10G1T PCIe adapter
|
| Jumbo Frame | |
| PCIe Slot | 1 x PCIe Gen 2 (x4)
Pre-installed QXG-10G1T PCIe adapter
|
| USB 2.0 port | 3 |
| USB 3.0 port | 2 |
| USB 3.1 Gen 2 (10Gbps) Port | Optional via a PCIe expansion adapter |
| Form Factor | 1U Rackmount |
| LED Indicators | HDD 1-4, Status, USB, LAN |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 44 × 439 × 499 mm |
| Weight (Net) | 7.63 kg |
| Weight (Gross) | 11.6 kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Redundant 250W, Input: 110-240 Vac~, 50-60Hz, 5A |
| Power Consumption: HDD Sleep Mode | 44.9 W |
| Power Consumption: Operating Mode, Typical | 65.62 W |
| Sound Level | 36.4 db(A) |
