Your first Thunderbolt 3 + 10GbE NAS

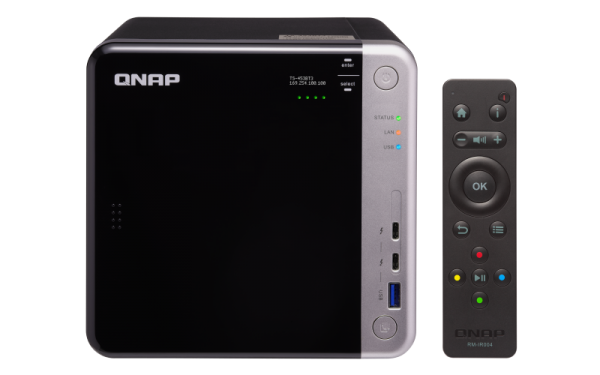

Featuring dual Thunderbolt™ 3 ports, coupled with M.2 SATA SSD caching and 10GBASE-T connectivity, the TS-453BT3 provides an ideal environment for professional collaborative media editing and high-speed file sharing. The TS-453BT3 features a sleek new look with an OLED panel and two capacitive touch buttons. With powerful hardware capabilities and feature-rich productivity tools, the TS-453BT3 provides the best NAS solution for media studios or small creative workgroups looking to greatly simplify their workflows.
-
High-speed Thunderbolt 3 with SMB protocol, allowing Mac and Windows users to collaborate on media editing.
-
Dual M.2 SATA 6 Gb/s SSD allows for setting up caching or storage pool, improving file access efficiency.
-
10GbE connectivity accelerates virtualization applications and file sharing across devices.
-
Qtier™ auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency
-
4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI output.
-
Qfiling automates file organization, greatly improving work efficiency.
Available Model
TS-453BT3-8G
Intel® Celeron® J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz), 8GB RAM
| CPU | Intel® Celeron® J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 500 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 8 GB SO-DIMM DDR3L (2 x 4 GB) |
| Maximum Memory | 8 GB (2 x 4 GB) |
| Memory Slot | 2 x SO-DIMM DDR3L
For dual-DIMM configuration, you must use a pair of identical DDR3L modules.
|
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 2.5-inch or 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable |
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
|
| M.2 SSD Slot | 2 x M.2 2280 SATA 6Gb/s SSD slots (pre-installed QM2 PCIe card)
The M.2 SSD is not included as standard.
|
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Pre-installed QM2 PCIe card
|
| Jumbo Frame | |
| Thunderbolt Port | 2 (Thunderbolt™ 3) |
| PCIe Slot | 1 x PCIe Gen 2 (x2), pre-installed with a QM2 expansion card (QM2-2S10G1TB) that includes a 10GbE 10GBASE-T port and two M.2 SATA SSD slots.
The M.2 SATA SSD slots on this QM2 card only support M.2 2280 SATA 6Gb/s SSD, please check the compatibilities before purchase.
|
| USB 3.0 port | 5 |
| USB 3.1 Gen 2 (10Gbps) Port | Optional via a PCIe adapter (need to replace the pre-installed QM2 card) |
| IR Sensor | (RM-IR004, RM-IR002, & MCE) |
| HDMI Output | 2, HDMI 1.4b (up to 3840 x 2160 @ 30Hz) |
| Audio Input | 2 x 3.5mm microphone jack (dynamic microphone only) |
| Audio Output | 1 x built-in speaker, 1 x line out jack (for amplifier or headphone amplifier)
You cannot use the speakers and the line-out jack simultaneously.
|
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-4 |
| LCD Display/ Button | Monochrome OLED display with capacitive sensing Enter and Select buttons |
| Buttons | Power, USB copy, Reset, Capacitive touch buttons (select, enter) |
| Dimensions (HxWxD) | 168 × 170 × 226 mm |
| Weight (Net) | 2.51 kg |
| Weight (Gross) | 4.05 kg |
| Operating temperature | 0 ~ 40˚C (32˚F ~ 104˚F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External Power Adapter, 120W, 100-240V |
| Fan | System: 1 x 12 cm |
| Kensington Security Slot |
