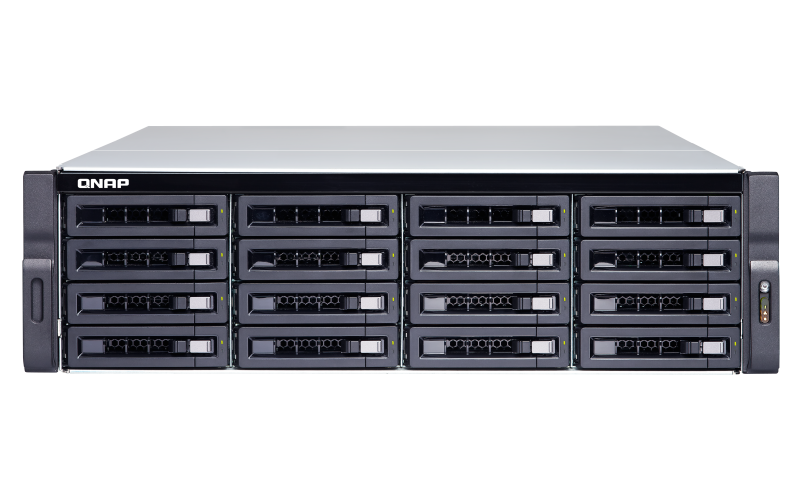

TS-1677XU-RP
Ryzen™-based rackmount NAS with up to 8 cores/16 threads and integrated dual 10GbE SFP+ ports to optimize system performance
Powered by AMD’s powerful Ryzen™ processor, the TS-1677XU-RP is capable of boosting virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.1 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-1677XU-RP. The TS-1677XU-RP also features a redundant power supply to ensure maximum system uptime.
-
Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
-
PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.1 Gen 2 (10Gbps) cards, or wireless network cards.
-
Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
-
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
-
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance
Available Models
- TS-1677XU-RP-1200-4G
AMD Ryzen™ 3 1200 4 cores/4 threads 3.1 GHz processor (Turbo Core 3.4 GHz), 4 GB RAM - TS-1677XU-RP-2600-8G
AMD Ryzen™ 5 2600 6 cores/12 threads 3.4 GHz processor (Turbo Core 3.9 GHz), 8 GB RAM - TS-1677XU-RP-2700-16G
AMD Ryzen™ 7 2700 8 cores/16 threads 3.2 GHz processor (Turbo Core 4.1 GHz), 16 GB RAM
Specification
| CPU |
|
| System Memory | 4 GB DDR4 (1 x 4GB) (TS-1677XU-RP-1200-4G)
8 GB DDR4 (2 x 4 GB) (TS-1677XU-RP-2600-8G) 16 GB DDR4 (2 x 8 GB) (TS-1677XU-RP-2700-16G) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x Long-DIMM slots (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
| Drive Bay | 16 x 3.5-inch SATA 6 Gbps bays |
| Drive Compatibility | 3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ ports |
| Gigabit Ethernet Port | 2 x RJ45 |
| USB Port | 2 x USB 3.1 Gen 2 (10 Gbps) • 1 x USB 3.1 Gen 2 (10 Gbps) Type-C • 1 x 3.1 Gen 2 (10 Gbps) Type-A 4 x USB 3.0 Type-A |
| PCIe Slot | Slot 1: Gen3 x8 (if Slot 2 is occuied, then the speed becomes Gen3 x4) Slot 2: Gen3 x4 Slot 3: Gen3 x8 (if Slot 4 is occuied, then the speed becomes Gen3 x4) Slot 4: Gen3 x4 |
| HDMI Output | Optional: With PCIe expansion card |
| Form Factor | 3U Rackmount |
| Dimensions (H x W x D) | 130 x 481 x 573.5 mm |
| Weight | 17.16 kg |
| Power Supply Unit | 500W (x2), 100-240V AC, 50/60Hz |
| Power Consumption (W) | In operation: 136.45 W |
| Fan | 4 x 9.2cm fan (12V DC) |
| Sound Level | 46.6 dB(A) |
| Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
