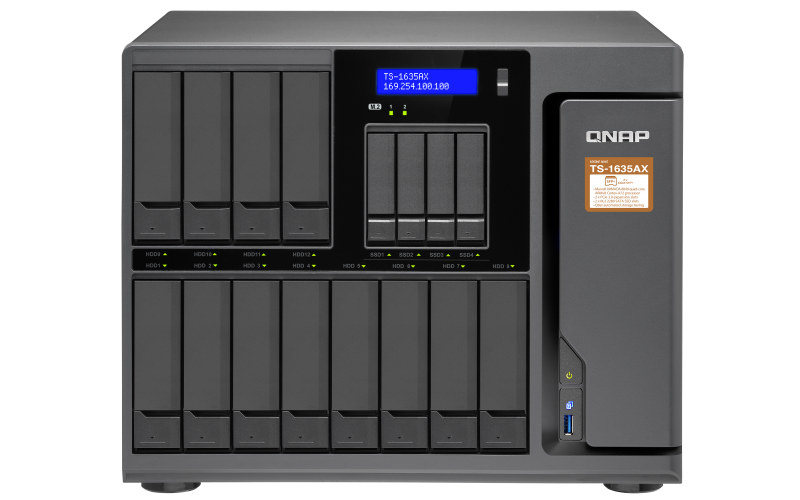

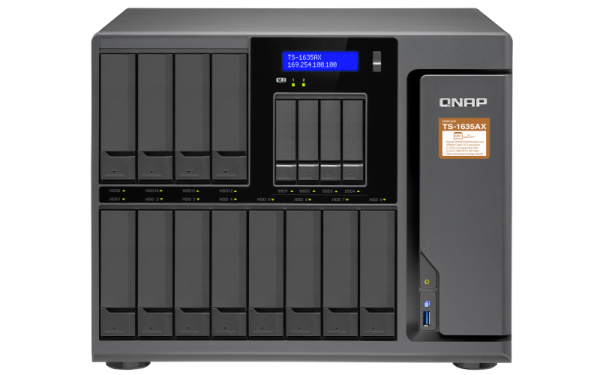

Versatile, high-performance 16-bay desktop NAS, powered by the Marvell ARMADA 8040 processor
The TS-1635AX is powered by a Marvell® ARMADA® 8040 ARMv8 Cortex-A72 64-bit quad-core 1.6 GHz processor that provides tremendous computing power and is capable of running a range of applications to help businesses grow as their data increases. The TS-1635AX features twelve 3.5-inch drive bays, four 2.5-inch drive bays and two M.2 SATA slots for building a high-capacity and high-performance storage solution with optimal cost efficiency. The TS-1635AX is also equipped with two 10GbE SFP+ ports and two gigabit ports, providing high-speed connectivity and versatile networking possibilities. The TS-1635AX also allows hardware expansion with two PCI Express (PCIe) 3.0 slots, enabling more functionality by adding a QM2 M.2 SSD/10GbE card, QWA-AC2600 wireless network card and/or USB 3.1 Gen2 (10Gbps) card. The TS-1635AX offers high-capacity storage potential, high processing power, and high versatility for expansion, which all contribute to a next-gen storage system at a lowered total cost of ownership (TCO).
-
The two built-in 10GbE SFP+ ports empower mission-critical applications such as databases and large data transfer/storage.
-
Install SSDs with four 2.5-inch drive bays and two M.2 SATA (2280 form factor) slots for enabling Qtier to boost performances.
-
The two PCIe 3.0 slots (x2 and x1) can be used to install additional QM2 cards, network cards, and USB 3.1 Gen2 (10Gbps) cards to expand NAS functionality.
-
Snapshots add an extra layer of protection to your disaster recovery plans, giving you the flexibility to create and revert snapshots locally and/or remotely.
-
The TS-1635AX supports containers (LXC and Docker®) and Linux command-line interface (CLI) virtual machines (VMs) for deploying diversified virtualization applications.
-
The TS-1635AX can be used with QNAP’s VJBOD technology to expand the capacity of other NAS. The capacity of the TS-1635AX can also be expanded by using QNAP expansion enclosures.
Available models
TS-1635AX-4G
Marvell® ARMADA® 8040 64-bit quad-core 1.6 GHz processor, 4 GB DDR4 RAM (up to 1 x 16 GB)
TS-1635AX-8G
Marvell® ARMADA® 8040 64-bit quad-core 1.6 GHz processor, 8 GB DDR4 RAM (up to 1 x 16 GB)
| CPU | Marvell ARMADA 8040 ARMv8 Cortex-A72 quad-core 1.6 GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | |
| Encryption Engine | |
| System Memory | 4 GB UDIMM DDR4 (1 x 4 GB) (TS-1635AX-4G)
8 GB UDIMM DDR4 (1 x 8 GB) (TS-1635AX-8G) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x UDIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 12 x 2.5-inch or 3.5-inch + 4 x 2.5-inch |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: |
| Hot-swappable |
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
|
| M.2 SSD Slot | 2 x M.2 2280 SATA SSD slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2
Expandable with an optional PCIe adapter
|
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| Jumbo Frame | |
| PCIe Slot | Slot 1: PCIe Gen3 (x2) Slot 2: PCIe Gen3 (x1) |
| USB 3.0 port | 3 |
| USB 3.1 Gen 2 (10Gbps) Port | Optional via a PCIe adapter |
| Audio Output | 1 x built-in speaker, 1 x line out jack (for ampfliers or speakers) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2 |
| LCD Display/ Button | |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm |
| Weight (Net) | 12.06 kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | ATX 250W, Input: 100-240 Vac~, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 39.74 W |
| Power Consumption: Operating Mode, Typical | 76.69 W
With 12 x 1TB HDDs and 4x 120GB SSDs
|
| Fan | 3 x 9.2cm system fan (12V DC) 1 x 6cm CPU fan (12V DC) |
| Sound Level | 23 db(A) |
| Other Interfaces | Kensington security slot |
