The TS-1263U-RP is a powerful network storage system powered by a high-performance AMD quad-core processor. It uniquely provides 10GbE at a budget price to maximize ROI, and doubles the encrypted file transfer performance with the AES-NI hardware-accelerated encryption engine to over 800 MB/s. Powered by the QTS operating system, the TS-1263U-RP provides versatile all-in-one server functionalities as well as unique features including Virtualization Station, which allows users to run VMs on the same device. The TS-1263U-RP is designed for small and medium-sized businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.
- 10GbE-ready, highly-efficient storage solution for HD video editing and sharing
- Hot-swappable redundant power supplies to ensure maximum system uptime
- Hardware-accelerated encryption engine for efficient cryptographic performance exceeding 800 MB/s
- Run multiple Windows®/Linux®/UNIX®/Android™ based virtual machines with the Virtualization Station
- Manage, share, and back up business data with Real-time Remote Replication (RTRR)
- NAS and iSCSI-SAN (IP-SAN) unified storage solution for server virtualization
- Supports VMware®, Citrix®, and Microsoft® Hyper-V™ and advanced virtualization features
- Scale up to 24 drives with a QNAP UX-1200U-RP expansion enclosure
| CPU | Quad-core 64-bit AMD 2.0GHz |
|---|---|
| Flash Memory | 512MB (DOM) |
| Memory (RAM) | 4GB DDR3L (4GB x 1) |
| Number of RAM Slots | 2 (Max 16GB, SO-DIMM DDR3L)
Note: For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide. |
| Max. number of HDDs/SSDs | 12 x 2.5″ or 3.5″ SATA 6Gb/s, 3Gb/s
NOTE: |
| Hard Disk Tray | 12 x Hot-swappable tray |
| Expansion Enclosure Support | 1 (UX-1200U-RP, UX-800U-RP) |
| Gigabit LAN Ports | 4 |

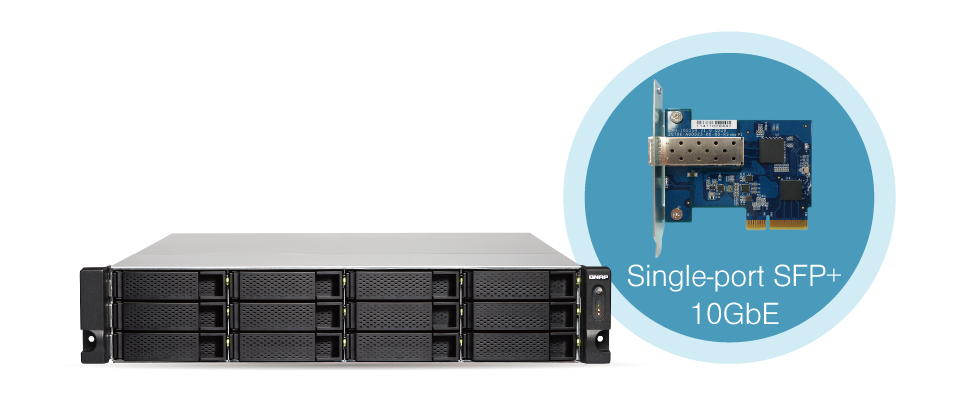

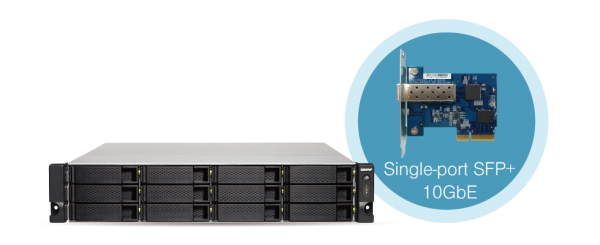

| 10GbE | 1 x SFP+ |
| Expansion Slot (PCI-E) | 1 (pre-installed SFP+ NIC) |
| USB 2.0 | 2 |
| USB 3.0 | 2 |
| LED Indicators | HDD 1-12, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| System Fan | 2 x 70mm, 12V DC |
| Form Factor | 2U Rackmount |
| Dimensions (HxWxD) mm | 89(H) x 482(W) x 534(D) mm 3.5(H) x 18.98(W) x 21.02(D) inch |
| Weight (Net/ Gross) | 16.14 kg (35.58 lbs.) / 18.98 kg (41.84 lbs.) |
| Temperature | 0 – 40 °C |
| Humidity | 5 – 95% R.H |
| Power Supply Specification | Redundant 250W, Input: 110-240 Vac~, 50-60Hz, 5A |
| Power Consumption: (W) | HDD Sleep Mode: 57.15 (w/ 10GbE NIC) In Operation: 143.17(w/ 10GbE NIC) |
| Sound Level* | Sound pressure (LpAm) :39.2 dB(A) |
* Tseting Environment:
Refer to ISO 7779, ISO 3744 ,Telcordia GR 63 CORE and ETSI EN 300 753 ; Maximum HDD loaded ; 40HL ½ ” High Sensitivity
Microphone at the by stander position. ; Background noise is 6.5 ~ 7.0dB(A) ; Ambient temperature is 21 ± 2℃ ; Relative humidity is 63% ± 5%
