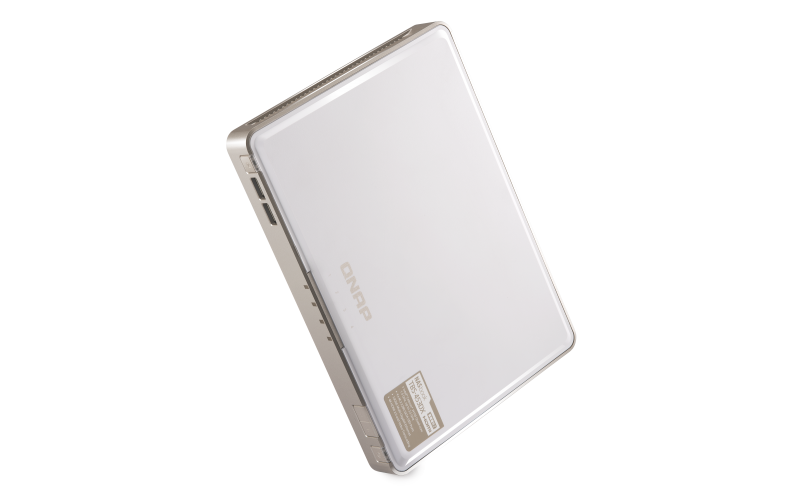

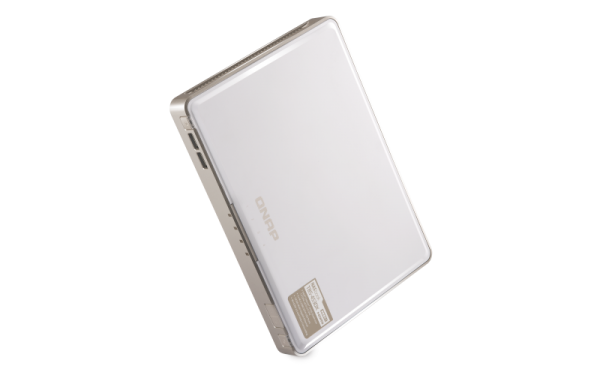

Compact & versatile: The quad-core 4-bay M.2 SATA SSD NASbook that provides quick and easy access to cloud storage
The compact, near-silent, and versatile TBS-453DX M.2 SSD NASbook is ideal for office meetings and multimedia applications. With CacheMount, you can map multiple cloud storages and enable caching to work with online files as fast as the files stored on your TBS-453DX, providing an amazing hybrid-cloud experience for seamless file storage, backup, and recovery. The TBS-453DX also supports excellent real-time transcoding and media streaming, and also provides 4K @60Hz HDMI 2.0 output. Coupled with QNAP’s comprehensive 10GbE solutions, the 10GbE-ready TBS-453DX is perfect for enhancing team workflows and multimedia applications. Whether you are using it for work, entertainment, backup, or sharing, the TBS-453DX is always ready for you.
-
Four M.2 2280 SATA SSD slots for quieter and higher-performance storage (M.2 SSDs sold separately).
-
Software-defined SSD extra over-provisioning (from 1% to 60%) optimizes SSD random write speeds and extends SSD lifespan.
-
Mount cloud storage space as local drives, and enable caching to work with online files as quickly as local files.
-
10GbE NBASE-T RJ-45 Multi-Gig connectivity accelerates file sharing across teams and devices.
-
4K media playback and online transcoding. Directly view on a TV/monitor via HDMI 2.0 output (up to 4K @60Hz).
-
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
Available Models
TBS-453DX-4G
Intel® Celeron® J4105 quad-core 1.5 GHz processor (burst up to 2.5 GHz), 4 GB DDR4 RAM (2 x 2 GB)
TBS-453DX-8G
Intel® Celeron® J4105 quad-core 1.5 GHz processor (burst up to 2.5 GHz), 8 GB DDR4 RAM (2 x 4 GB)
| CPU | Intel® Celeron® J4105 quad-core 1.5 GHz processor (burst up to 2.5 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 600 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 4 GB SO-DIMM DDR4 (2 x 2 GB) (TBS-453DX-4G)
8 GB DDR4 RAM (2 x 4 GB) (TBS-453DX-8G) |
| Maximum Memory | 8 GB (2 x 4 GB) |
| Memory Slot | 2 x SO-DIMM DDR4
For dual-DIMM configuration, you must use a pair of identical RAM modules.
|
| Flash Memory | 4GB (Dual boot OS protection) |
| M.2 SSD Slot | 4 x M.2 2280 SATA 6Gb/s slots
The system is shipped without SSD.
For the SSD compatibility list, please visit https://www.qnap.com/compatibility/ |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 1 |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Jumbo Frame | |
| USB 2.0 port | 4 |
| USB 3.0 port | 3 |
| IR Sensor | (RM-IR004) |
| HDMI Output | 1, HDMI 2.0 (up to resolution 3840 x 2160 @ 60Hz) |
| Audio Input | 2 x 3.5mm microphone jacks (dynamic microphones only) |
| Audio Output | 2 x speakers, 3.5mm line out jack (for amplifier or headphone amplifier) |
| Form Factor | Compact |
| LED Indicators | SSD1-4 |
| Buttons | Power, Reset, Copy, Audio volume |
| Dimensions (HxWxD) | 30 × 230 × 165 mm |
| Weight (Net) | 0.8 kg |
| Weight (Gross) | 1.7 kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External Power Adapter, 65W, 100-240V |
| Power Consumption: HDD Sleep Mode | 12.38 W |
| Power Consumption: Operating Mode, Typical | 16.52 W |
| Fan | 1 x system fan |
| Sound Level | 15.8 db(A) |
| System Warning | Voice prompts, Buzzer |
| Kensington Security Slot |
