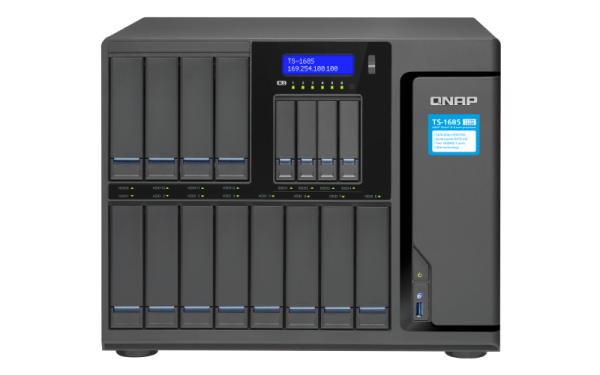

High-capacity 16-bay Xeon D Super NAS with exceptional performance
Supporting up to twelve 3.5″ HDDs and four 2.5″ SSDs, the TS-1685 is a high-capacity, robust, and reliable business NAS powered by an Intel® Xeon® D processor. Designed to optimize enterprise IT infrastructure, the TS-1685 comes with three PCIe slots that support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards. Incorporating security and scalability, the TS-1685 presents an ideal choice for a complete business-ready storage solution with cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization, and more business applications.
- NAS and iSCSI-SAN unified storage solution
- Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots
- Qtier technology and SSD caching enable 24/7 optimized storage efficiency
- 10GbE/40GbE expandability, highly-efficient storage solution for virtualization and intensive data transmission
- Supports virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery
- Q’center for centrally managing all of your NAS devices, and QRM+ as a centralized management solution for networked computing devices
- Qfiling enabling automated file organization, Qsirch full-text search engine, and QmailAgent for centralized email management
- Scalable up to 56 drive capacity with QNAP expansion enclosures
Available Models
TS-1685-D1531-32G-550W
Intel® Xeon® D-1531 6-core 2.2 GHz processor, 32 GB RAM UDIMM DDR4 (2 x 16GB), 550W PSU
TS-1685-D1531-16G
Intel® Xeon® D-1531 6-core 2.2 GHz processor, 16GB RAM UDIMM DDR4 (2 x 8GB)
TS-1685-D1521-16G-550W
Intel® Xeon® D-1521 quad-core 2.4 GHz processor, Max turbo to 2.7 GHz, 16GB RAM UDIMM DDR4 (2 x 8GB), 550W PSU
TS-1685-D1521-8G
Intel® Xeon® D-1521 quad-core 2.4 GHz processor, Max turbo to 2.7 GHz, 8GB RAM UDIMM DDR4 (1 x 8GB)
| CPU | Intel® Xeon® D-1521 quad-core 2.4 GHz processor, Max turbo to 2.7 GHz. (TS-1685-D1521) Intel® Xeon® D-1531 6-core 2.2 GHz processor (TS-1685-D1531) |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Maximum Memory | UDIMM: 64 GB (4 x 16 GB) RDIMM: 128GB (4 x 32 GB) |
| Memory Slot | 4 x DDR4 Long-DIMM
IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory.
|
| Flash Memory | 512MB (DOM for dual OS) |
| Drive Bay | 12 x 3.5-inch + 4 x 2.5-inch |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 SSD Slot | 6 x M.2 22110/2280/2260/2242 SATA 6Gb/s slot
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| Gigabit Ethernet Port (RJ45) | 4 |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T |
| Jumbo Frame | |
| PCIe Slot | Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen2 x4 Slot 3: PCIe Gen3 x8 |
| USB 3.0 port | 3 |
| Audio Output | 1 x built-in speaker, 1 x 3.5mm Line-out jack
Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker.
|
| Form Factor | Desktop |
| LED Indicators | System status, 2.5” SSD, M.2 SSD, 3.5” HDD |
| LCD Display/ Button | |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm |
| Weight (Net) | 13.39 kg |
| Weight (Gross) | 15.96 kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W or 550W |
| Power Consumption: HDD Sleep Mode | 61.36 W |
| Power Consumption: Operating Mode, Typical | 127 W |
| Fan | System: 3 x 9.2cm fan (12V DC) CPU: 2 x 9cm fan |
| Sound Level | 22.5 db(A) |
