Thiết bị lưu trữ Qnap TS-1677X


Category:

Giá tham khảo:

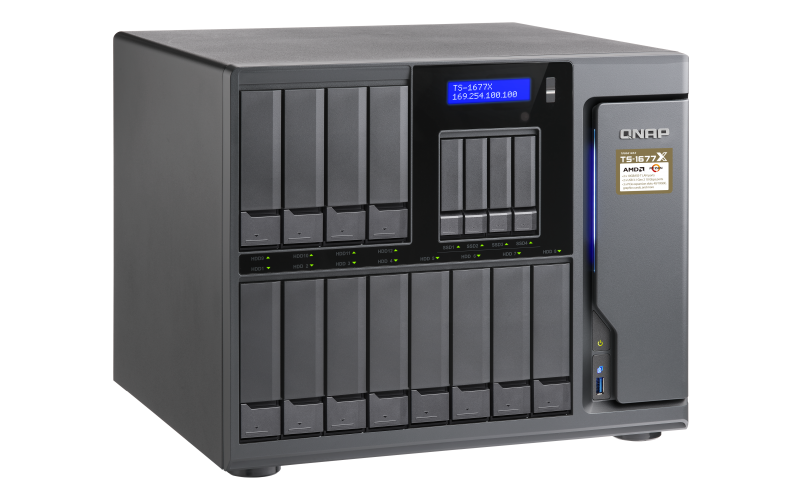

TS-1677X

Ryzen™ NAS with graphics processing to facilitate AI-oriented tasks



The giant TS-1677X is powered by an AMD Ryzen™ processor with up to 8 cores/16 threads. When used with a high-end graphics card, the TS-1677X delivers incredible computing performance to empower data-intensive machine learning applications. The AMD Ryzen™ processor, with Turbo Core of up to 3.7 GHz, can greatly boost virtual machine performance.

  • PCIe expandability allows for graphics cards, 10GbE/40GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards.

  • Supports AMD Radeon™ and NVIDIA® graphics cards for AI-computing, video processing or GPU-passthrough to VMs.

  • Dual 10GBASE-T (RJ45) ports accelerate virtualization applications and high-resolution video editing and sharing.

  • Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

  • Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

  • RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance.

Available Models

  • TS-1677X-1200-4G

    AMD Ryzen™ 3 1200 4 cores/4 threads 3.1 GHz processor (Turbo Core 3.4 GHz), 4 GB RAM

  • TS-1677X-1600-8G

    AMD Ryzen™ 5 1600 6 cores/12 threads 3.2 GHz processor (Turbo Core 3.6 GHz), 8 GB RAM

  • TS-1677X-1700-16G

    AMD Ryzen™ 7 1700 8 cores/16 threads 3.0 GHz processor (Turbo Core 3.7 GHz), 16 GB RAM

  • TS-1677X-1700-64G

    AMD Ryzen™ 7 1700 8 cores/16 threads 3.0 GHz processor (Turbo Core 3.7 GHz), 64 GB RAM



Specification





TS-1677X-1700-64G TS-1677X-1700-16G TS-1677X-1600-8G TS-1677X-1200-4G
CPU AMD Ryzen™ 7 1700 8-core/16-thread 3.0 GHz processor, Turbo Core 3.7 GHz  AMD Ryzen™ 5 1600 6-core/12-thread 3.2 GHz processor, Turbo Core 3.6 GHz AMD Ryzen™ 3 1200 4-core/4-thread 3.1 GHz processor, Turbo Core 3.4 GHz
Architecture: 64-bit
Graphics: Optional (with PCIe expansion card)
Encryption Engine: AES-NI
System Memory 64 GB DDR4 (4 x 16 GB)  16 GB DDR4 (2 x 8 GB)  8 GB DDR4 (2 x 4 GB) 4 GB DDR4 (1 x 4 GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x Long-DIMM slots
(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Drive Bay 12 x 3.5-inch SATA 6 Gbps bays
4 x 2.5-inch SATA 6 Gbps bays, max 9.5mm drive height
Drive Compatibility 3.5-inch bays:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives
2.5-inch bays:
• 2.5-inch solid state drives
10 Gigabit Ethernet Port 2 x 10GBASE-T RJ45, supporting 10G/5G/2.5G/1G/100M
Note: Please use CAT6a or CAT 7 LAN cables (sold separately) to achieve 10GbE speed
Gigabit Ethernet Port 4 x RJ45
USB Port 8 x USB 3.0
• Front: 1 x USB 3.0 Type-A (Note: It comes with the One-Touch Copy button)
• Back: 6 x USB 3.0 Type-A; 1 x USB 3.0 Type-C
PCIe Slot Slot 1: Gen3 x8
Slot 2: Gen3 x4
Slot 3: Gen2 x4
HDMI Output Optional: With PCIe expansion card
USB One Touch Copy Front: USB 3.0 Type-A
Audio • 2 x 3.5 mm dynamic microphone jacks
• 1 x 3.5 mm line-out jack
• 1 x speaker
• Alarm buzzer
Note: You cannot use the speakers and the line-out jack simultaneously.
IR sensor Yes
Note: Requires an optional graphics card and RM-IR004 remote control
Form Factor Tower
Dimensions (H x W x D) 303.84 x 369.89 x 319.8 mm
11.96 x 14.56 x 12.59 inch
Weight 13.39 kg (29.52 lbs)
Power Supply Unit 550W, 100-240V AC, 50/60Hz
Fan System: 3 x 9.2cm fan (12V DC)
CPU: 2 x 9cm fan
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot
